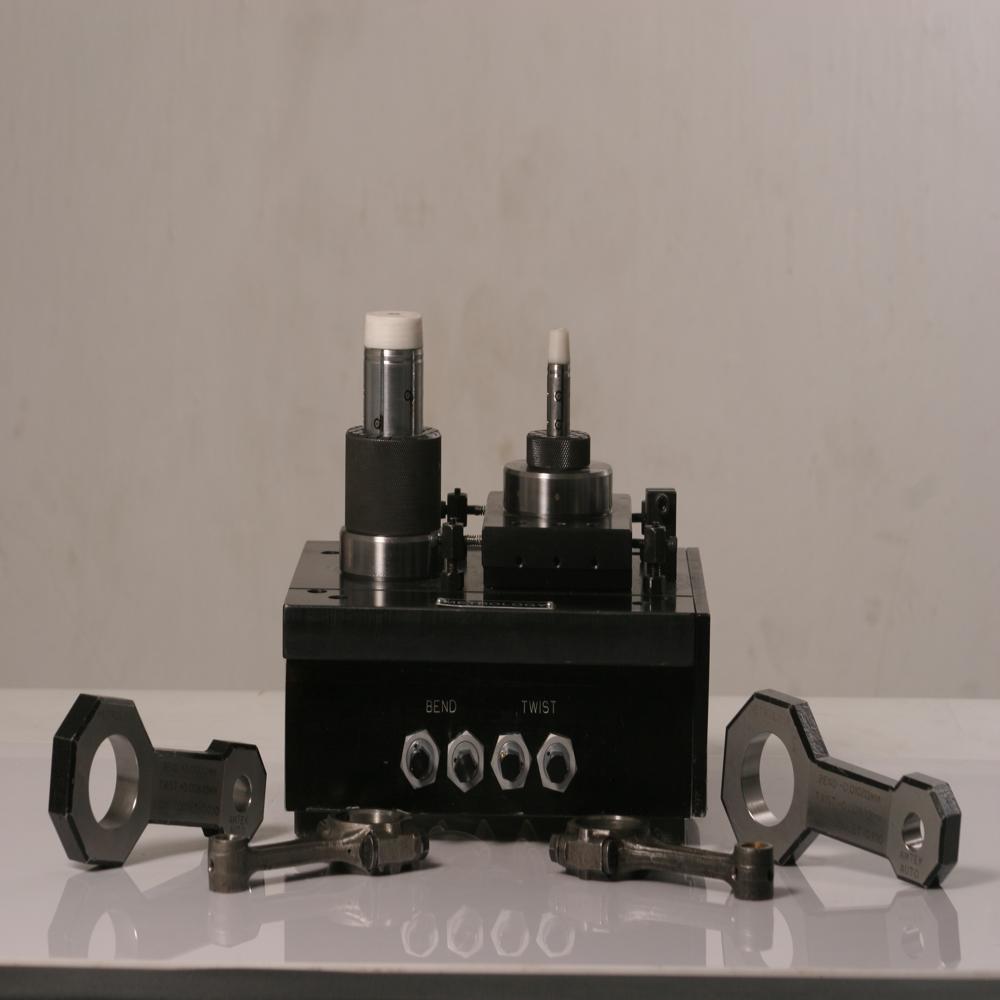

Con Rod Bend Twist, C.D. Checking Gauge

Con Rod Bend Twist, C.D. Checking Gauge Specification

Display
n/a

Usage
measuring

Material
ohns

Product Type
pneumatic

Color
gray

Application
Other

About Con Rod Bend Twist, C.D. Checking Gauge

A Connecting Rod Bend, Twist, and C.D. (Center Distance) Checking Gauge is a specialized precision metrology fixture used in automotive manufacturing to verify the geometric alignment of connecting rods. These gauges ensure that the rods big and small ends are perfectly parallel and that the center-to-center distance meets strict design tolerances.

Product Features & Specifications

Parameters Measured: Simultaneously checks for Bend (horizontal deviation), Twist (vertical deviation/incline), and Center Distance (C.D.).
Construction: Typically built with a robust, solid steel or mild steel body for long-term stability and repeatability. High-precision mandrels (pins) are used as reference points through the rod bores.
Measurement Method:
- Contact Type: Uses dial indicators or electronic probes to measure deviations.
- Pneumatic/Air Gauging: Non-contact air probes can be used for faster, high-precision shop floor inspection.
Accuracy: High-grade industrial models often provide accuracy up to $\pm$0.01 mm or better.
Adaptability: Fixtures can be customized to accommodate various rod sizes and geometries for different engine type
